Herramienta Rótulo

Añadir un rótulo

1. Click the Callout tool in the Snagit Editor toolbar.



   Note: If you customized the toolbar, you may need to click the More dropdown to select the tool. See Customize the Snagit Toolbar.

2. Select a Quick Style or edit the tool properties to customize the tool.
3. Click and drag on the canvas to draw the callout.
4. Type text in the callout.
5. Complete any of the following to edit the callout:
   • To resize the callout, drag the white handles.

   • To resize the callout tail, drag the yellow handle.

   • To add an extra callout tail, drag the blue handle.

   • To delete a callout tail, drag the yellow handle onto the callout.

   • To rotate the callout, drag the green handle.

   • To adjust the radii of rounded corners (Mac only), drag the yellow handle near the corner.

   • To move the callout body around the callout tail, drag the anchor point.

6. When you are finished with the Callout tool, click the Move tool in the toolbar to select, move, edit, or delete objects you added to your image.


Eliminar un rótulo

1. Click to select the callout on the Canvas.
2. Press the Delete key.

Propiedades de la herramienta

Edita las propiedades para personalizar la herramienta.

Relleno/Contorno

• Fill: Change the interior color.

• Outline: Change the color outlining a callout.


Haz clic en el desplegable y selecciona una de las siguientes opciones para establecer el color:

• Click to select a preset or color from the palette.

• Enter a HEX or RGB value into the field.

• Click the Eyedropper button and then click to select a color from anywhere on the screen.


Forma
Haz clic en el desplegable para seleccionar el estilo de la forma.

Sombra
Haz clic para seleccionar la dirección de una sombra. Para desactivar la sombra, haz clic para anular la selección de la dirección de la sombra.

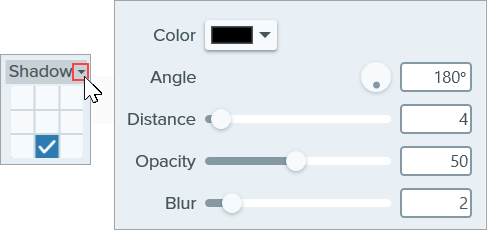

Propiedades avanzadas de sombra
Haz clic en la flecha desplegable para acceder a otras propiedades de sombra:

• Color: Select a color for the shadow.
• Angle (Windows only): Set the direction of the shadow extending from the tool.
• Distance: Increase/decrease the distance between the tool and the shadow.
• Opacity: Increase/decrease the transparency of the shadow.
• Blur: Increase/decrease the clarity of the shadow.

Propiedades de las fuentes

• Font: Click the dropdown to select a font.
• Font Color: Click the dropdown to select a font color.
• Font Size: Drag the slider or enter a value to adjust the font size.
• Font Style (Mac Only): Click the dropdown to select the text formatting: Regular, Italic, Bold, Bold Italic. For Windows, see Advanced Properties for more formatting options.
• Outline Size (Windows)/Line Width (Mac): Drag the slider or enter a value to adjust the size of the callout outline. Set to 0 to remove the outline.

Estilo de flecha
Haz clic en el desplegable para seleccionar un estilo de línea y un estilo de final para la cola del rótulo.

Color de flecha

Haz clic en el desplegable y selecciona una de las siguientes opciones para establecer el color:

• Click to select a preset or color from the palette.

• Enter a HEX or RGB value into the field.

• Click the Eyedropper button and then click to select a color from anywhere on the screen.

Tamaño de flecha
Arrastra el control deslizante o introduce un valor para ajustar el tamaño de la cola del rótulo.

Propiedades avanzadas
Haz clic en la flecha desplegable para acceder a otras propiedades.

• Style: Click to select the text formatting: Bold (Windows), Italic (Windows), Underline, Strikethrough (Mac). For Mac, see Font Style for more formatting options.
• Alignment: Click to select the horizontal or vertical text alignment.
• Padding (Windows only): Adjust the space surrounding the text.
• Opacity: Drag the slider to adjust the text transparency level.
• Shaded (Windows only): Enable the checkbox to blend the callout outline color with the fill color.
• Line Style: Select a solid, dashed, or dotted style for the outline of the callout shape, or select the No Line option (Mac only).
